Solar Star's Attic Fan is the Ideal Ventilation Solution
Solar Star, the leader in solar powered attic ventilation, brings you the most technologically-advanced, environmentally-friendly, ventilation solution today. Best of all, Solar Star brings you the solutions that cost nothing to operate. Imagine the savings.
Find out how Solar Star fights heat and moisture.
Get a 30% Federal Tax Credit
Keeping your attic cool has never been easier–and with a 30% Federal Tax Credit it's the best time ever to get a Solar Star Attic Fan. For more details visit our Tax Credit Information Center.
Roof Mounted Attic Fans

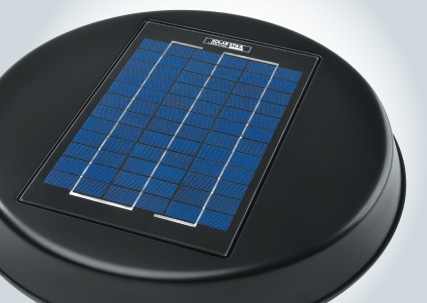

RM 1200 A classic roof mount model for a wide range of attic ventilation needs. For example: low sloped roofs with a smaller area.

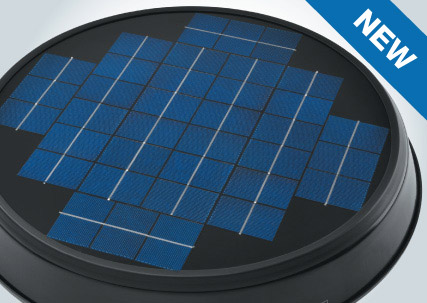

RM 1600 This robust roof mount system is designed to accommodate even the most expansive attic spaces. For example: steep sloped roofs with smaller area, steep sloped roofs with larger area or low sloped roofs with larger area.
Interior Mounted Attic Fans
Accessories

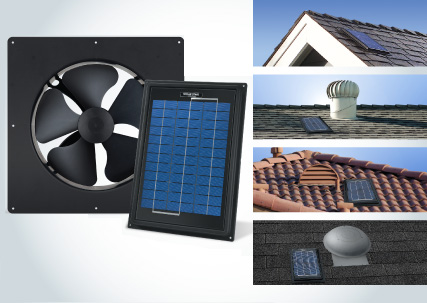

IM 1200 Transform your existing attic vent into an active solar powered solution with our interior mount model. For applications where Gable Vents, Dormer Vents, Whirlybirds and Powered Vents already exist.

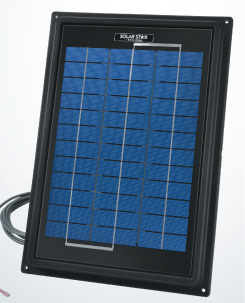

RM 1200 Add-On Panel An ideal addition for instances when continuous sun exposure is limited. Compatible with any Solar Star Roof Mount product.

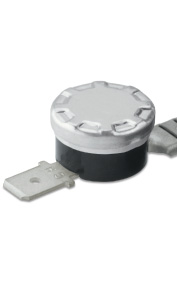

Thermal Switch Activates temperature settings for best results in all climates. Easily installs on all Solar Star models.
Residential Quantity Guidelines
Roof Zone Size sf2/m2
Roof Pitch
Up to 4/12
Roof Pitch
5/12 to 8/12
Roof Pitch
9/12 to 12/12
800/74
1 x 2024
1 x 2024
1 x 2024
1,200/111.5
1 x 2024
1 x 2024
1 x 2024
1,600/149
2 x 2024 or
1 x 2024
1 x 2024
2 x 2024
2,000/186
1 x 2024
2 x 2024
2 x 2024
2,400/223
2 x 2024
2 x 2024
3 x 2024
There are two options available in the 1200 series. Our RM 1200 is ideal for roof mount applications, and the IM 1200 is a great interior mount solution for areas with an existing vent.
Legend:
Represents smaller attic zones (see figure below)
Represents larger attic
zones (see figure below)
Recommended air intake venting (eaves or soffits) size requirements:
Attic Area
(square feet)/2 =
Square inches of inlet vent area
Attic Area
(square meter)/0.29 = Square centimeters of inlet vent area

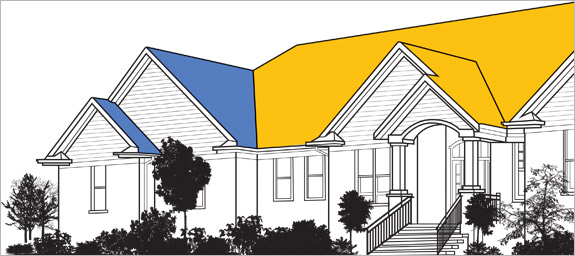

Typical 3000 SF house divided into attic zones with Solar Star recommendations.
Typical 1200 SF house.
Zone 1: 600 SF | Roof Pitch: 7/12
Zone 2: 2400 SF | Roof Pitch: 7/12
Single zone: 1200 SF | Roof Pitch: 4/12
Suggested Options: 1 x RM 1200 or
1 x IM 1200.
Suggested Option: 2 x RM 1600
Suggested Option: 1 x RM 1200
For smaller attic zones with less volume, the RM 1200 is the best option. When a roof mount is not desirable, or for areas with an existing gable vent (or other passive vent) use the IM 1200.
For expansive attic zones with more volume, the RM 1600 provides the most efficient venting solution.
For homes with a single smaller attic zone,
the RM 1200 is an ideal solution.
Product Approvals:
RM 1200 Low & High Profile meets Florida Building Code (FL10884) and Texas Department of Insurance (RV-57)
RM 1200 High Profile configuration available to meet Florida Building Code HVHZ (FL14826)

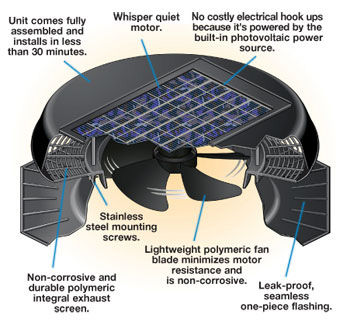

Technical Specifications
SOLAR STAR® SOLAR PANEL
Advanced 10 or 22-watt photovoltaic Solar Star solar panel
High-impact resistant panel provides protection from hail, wind and foreign object damage
MOTOR
High-performance, long lasting motor
Brushless DC motor with Double-shielded ball bearings
Whisper quiet
FAN BLADE
5-wing, polymeric fan blade designed for high CFM output and low noise
Canted fan blade increases airflow
Lightweight design reduces motor resistance for increased performance and reliability
Corrosion resistant
HOUSING and FLASHING SYSTEMS
Powder coated steel housing
Non-corrosive polymeric vent screen
Seamless one piece steel flashings ensure fast, hassle-free installations on virtually any roof type and pitch. All flashings are designed to work on flat as well as pitched roofs.
WARRANTY
5 year warranty on solar panel and motor
10 year warranty on all other components
Solar Star's "plug and play" technology means easy hook-up to any of Solar Star's Roof Mount Vents.
Installs easily in under 30 minutes.
Polymeric housing means long lasting performance in all weather conditions.
Costs nothing to operate.
Flashing Options
Low Profile
This sleek, unobtrusive design is for most roof applications
Pitched
It's a great alternative for north facing roofs when you need to improve exposure to the sun. It's ideal for tile roofs when used with the self-flashing Tile Roof Add-on Kit (sold separately)
High Profile
This discreet, aerodynamic design is perfect for locations with heavy snow loads. It's also another option for tile roofs when "mudding in" is preferred
